Radiant-Cut Split-Shank Pavé Engagement Ring

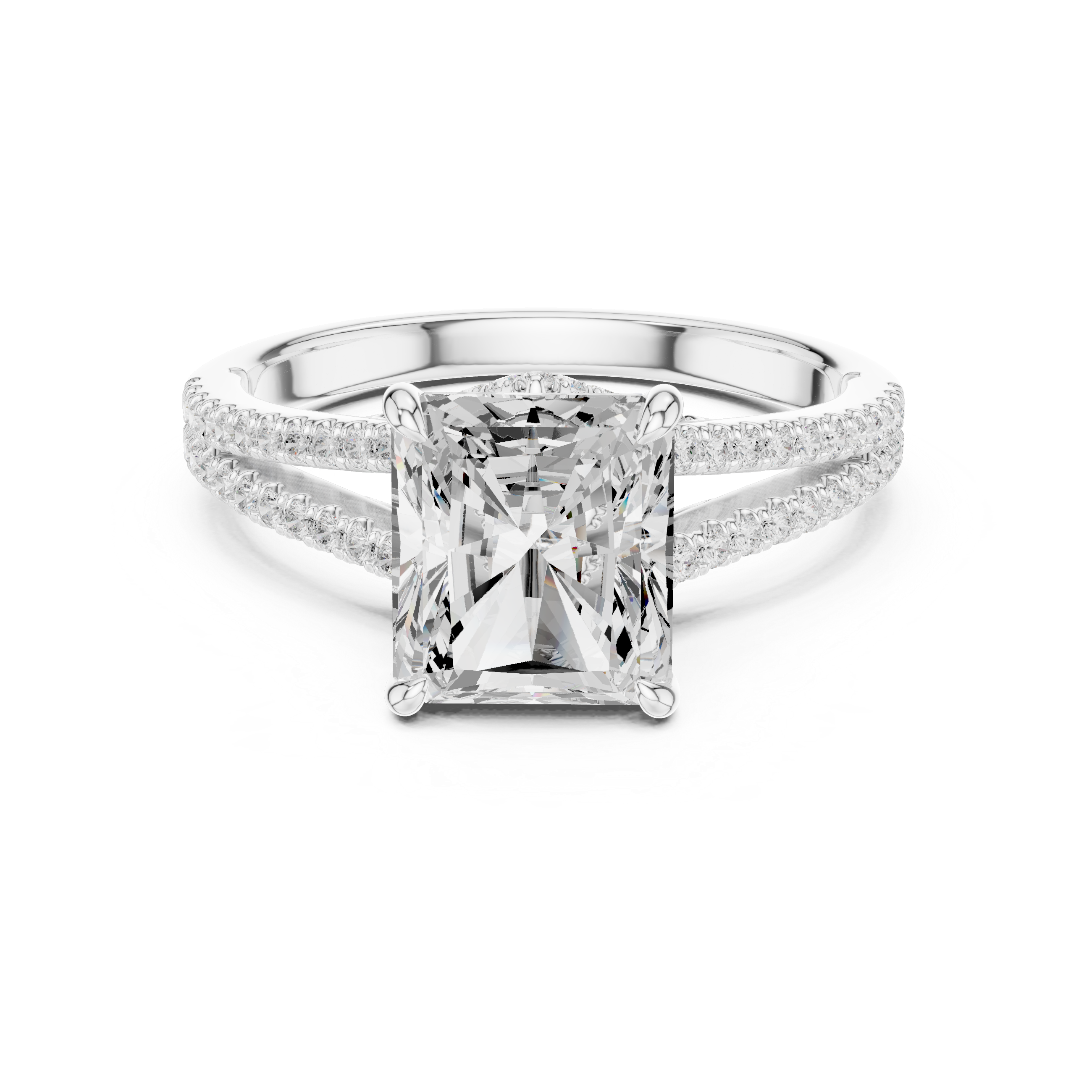

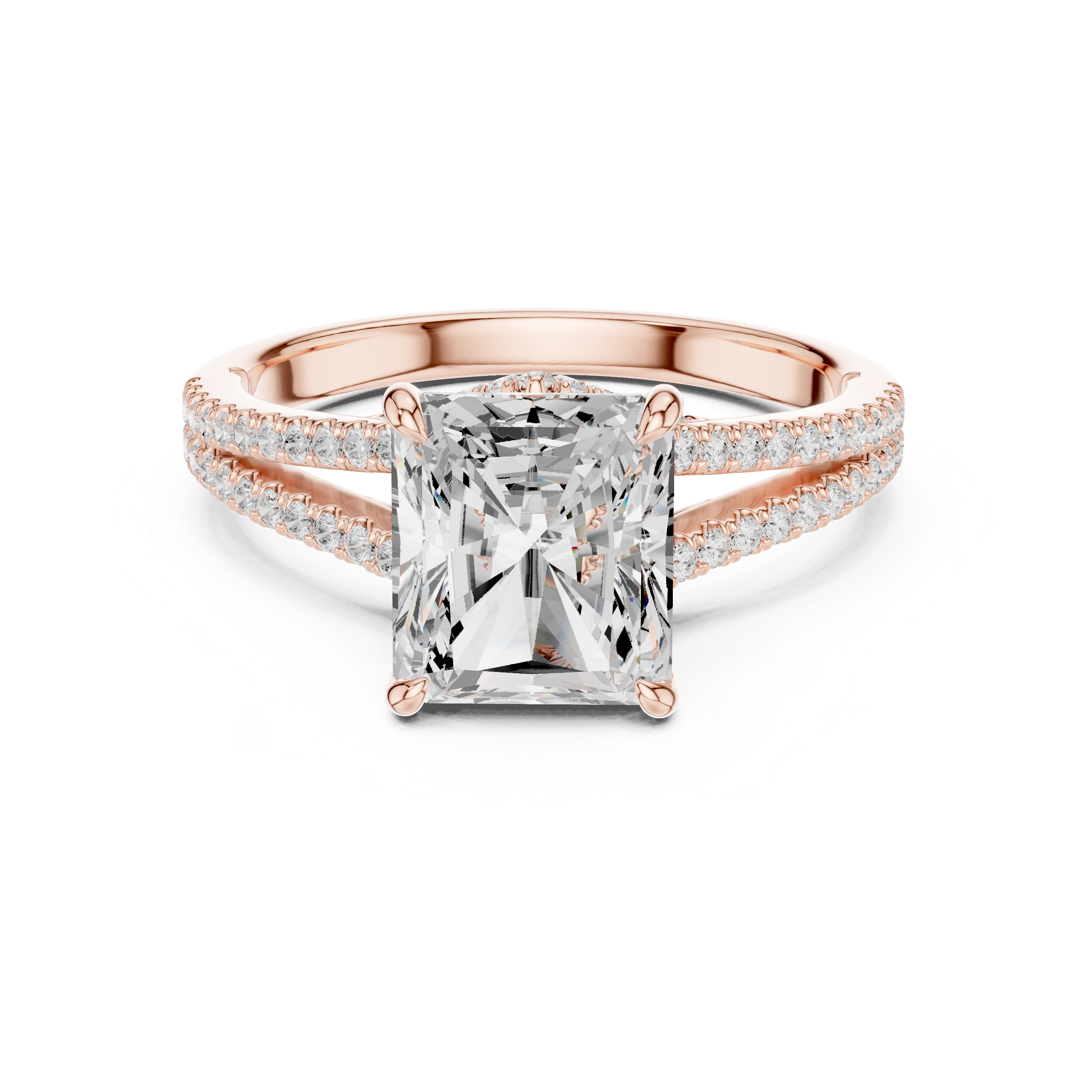

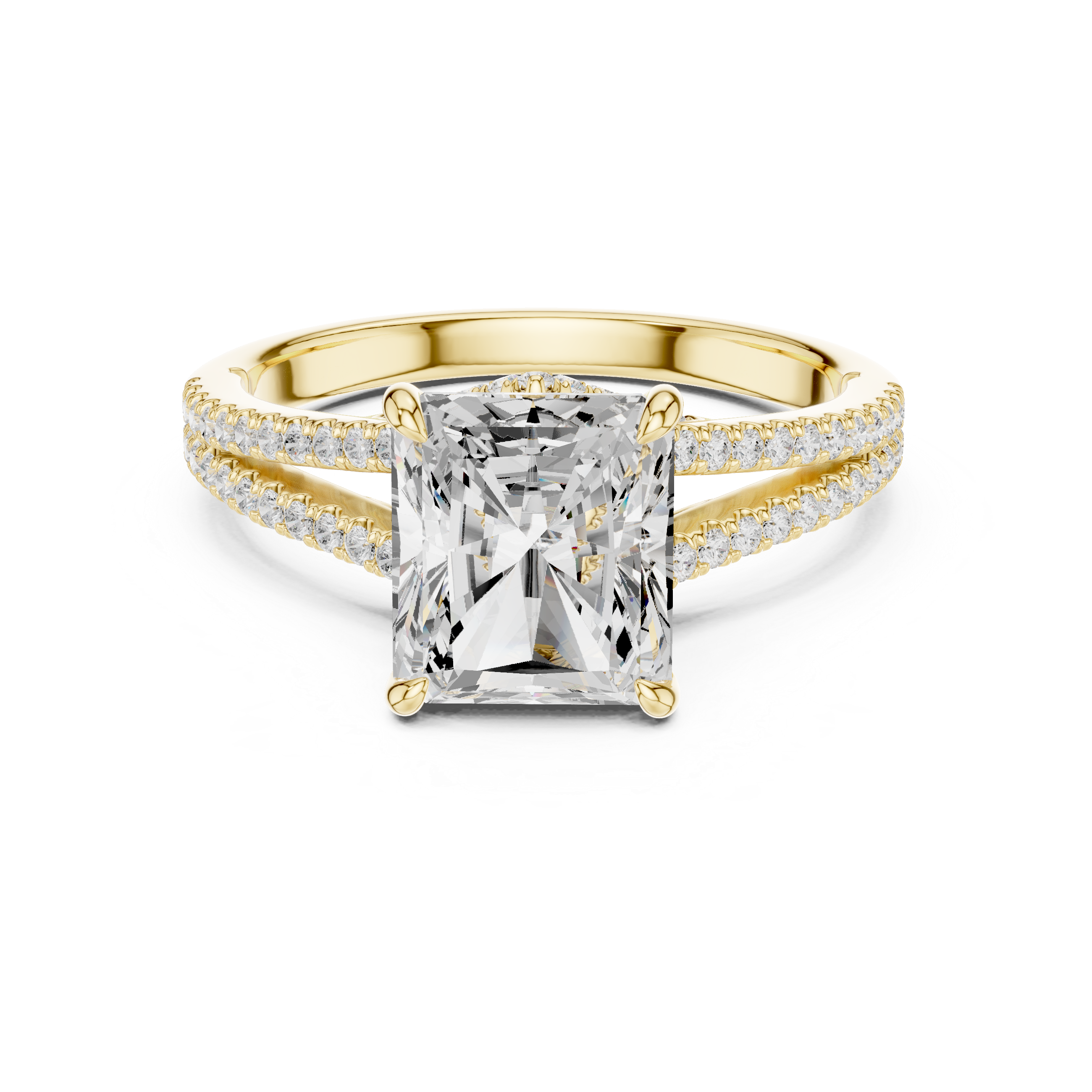

This refined engagement ring features a vertically set radiant-cut center stone secured in a four-prong setting. The rectangular silhouette, softly cropped corners, and brilliant faceting create a balanced combination of clean geometry and strong light performance.

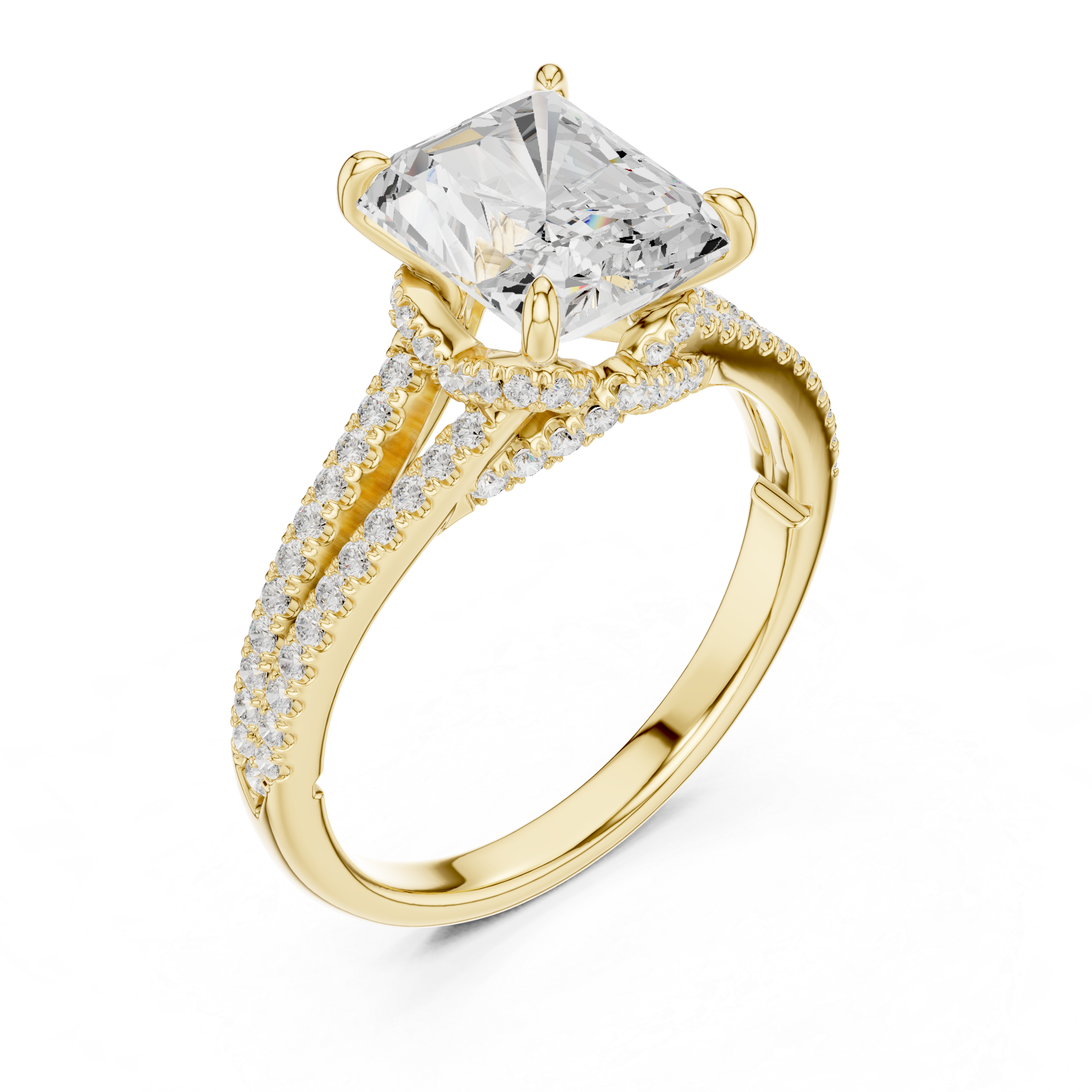

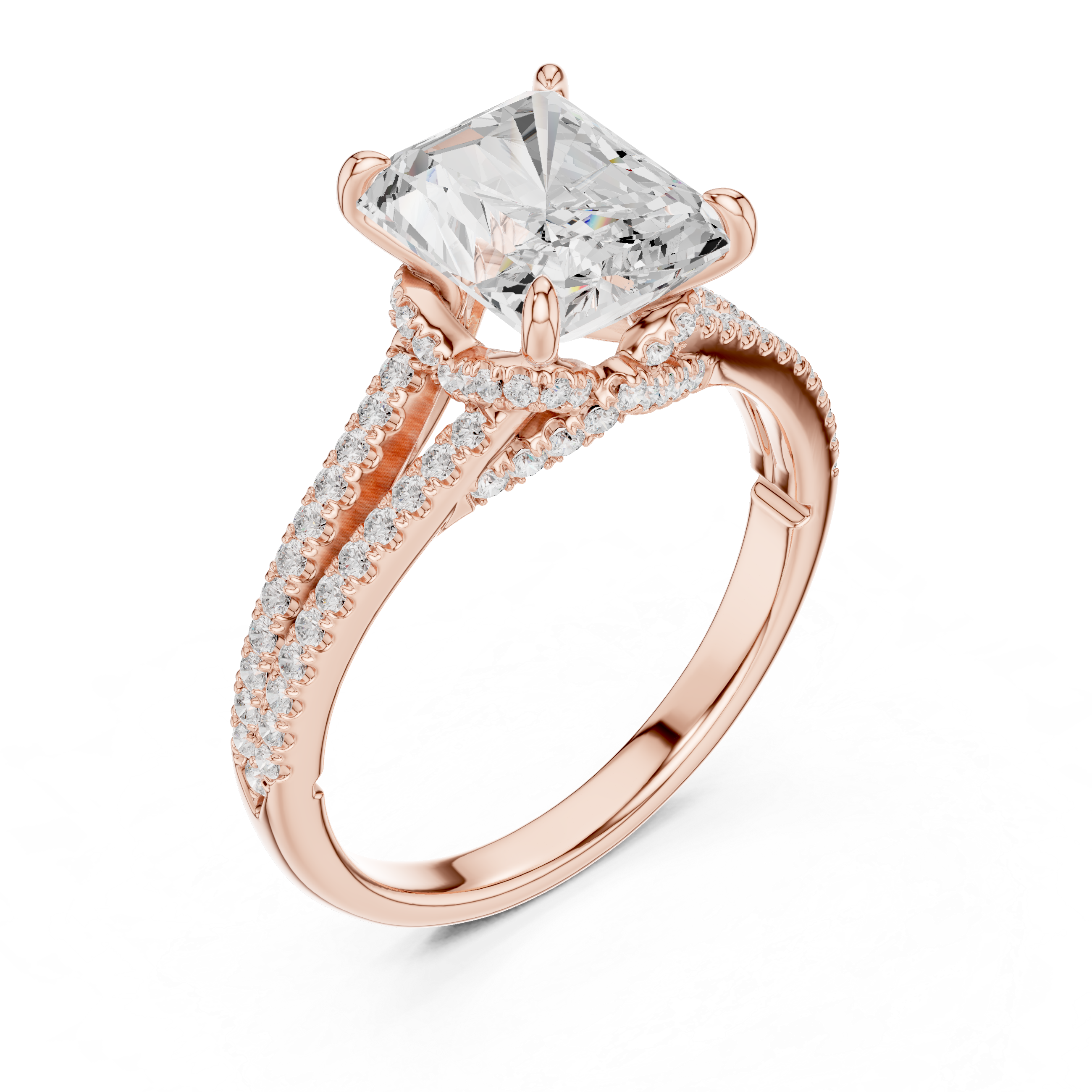

The band opens into an elegant split-shank structure near the center setting. Both branches are decorated with round accent stones in a U-cut pavé arrangement, creating two continuous lines of sparkle while preserving an airy, contemporary appearance.

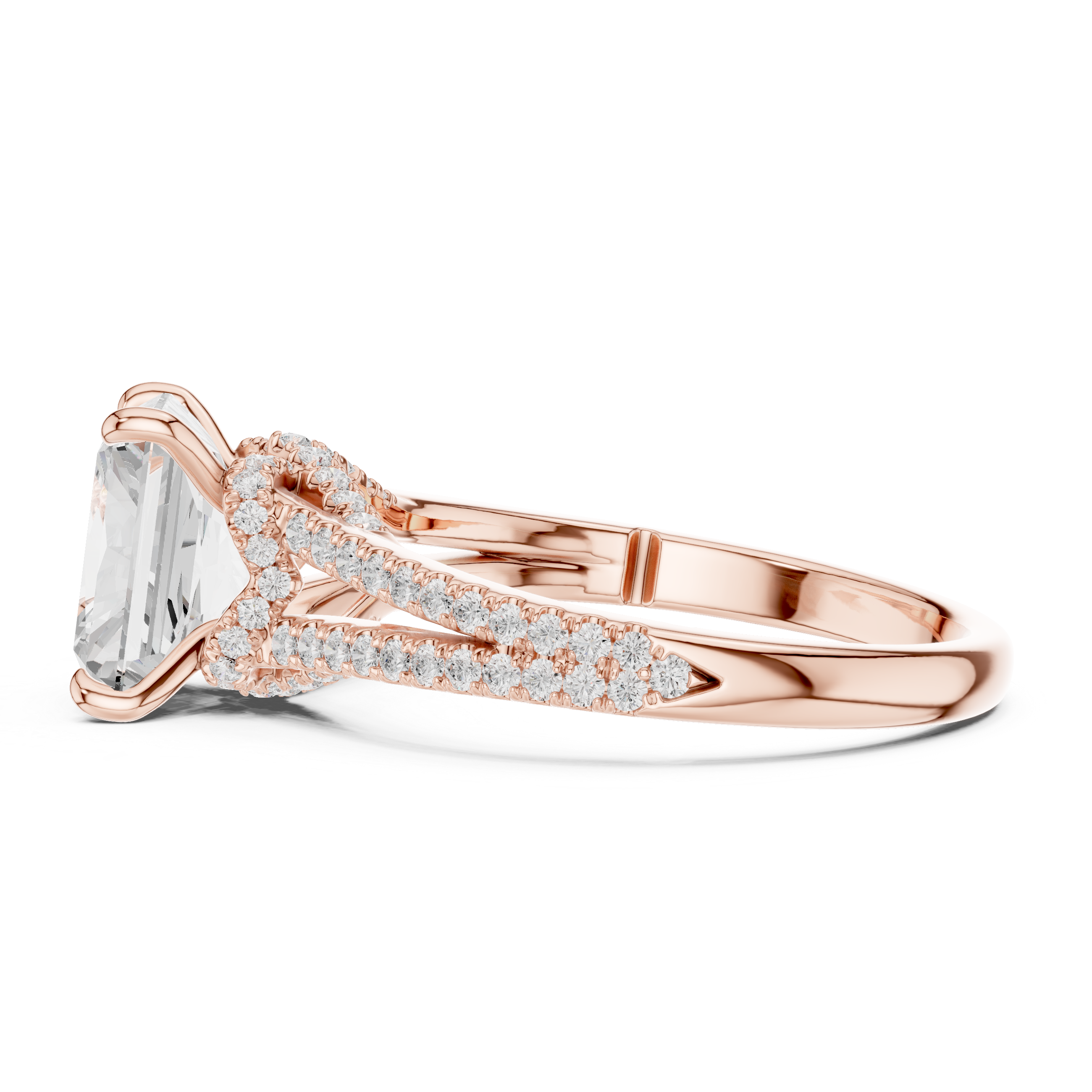

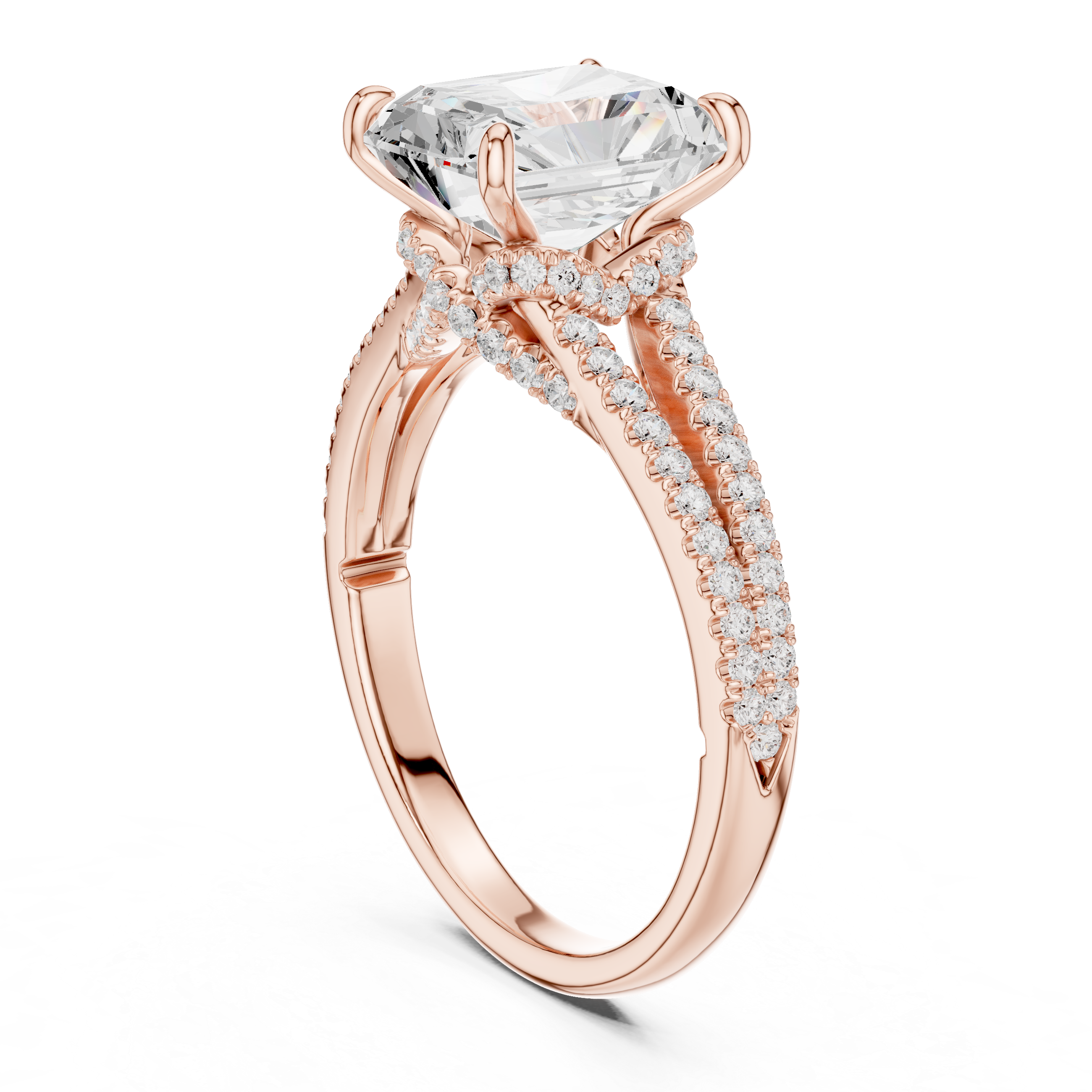

According to the technical drawing, the shoulders cross beneath the elevated center setting and form a detailed open gallery. Additional accent stones continue through the upper gallery and shoulder area, allowing the ring to display brilliance from the front, side, and three-quarter views.

Technical Highlight

• Product Type: Radiant-cut split-shank engagement ring
• Design Number: DDLR-252
• CAD Ring Size: US 7
• Inside Diameter: Approximately 17.33 mm
• Center Stone Shape: Radiant cut
• Center Stone Size: Approximately 8.00 × 7.00 mm
• Center Stone Quantity: 1
• Center Stone Weight: Approximately 2.50 ct
• Center Setting: Four-prong collet setting
• Band Style: Double split shank with pavé-set branches
• Gallery Style: Elevated crossing gallery with accent-stone detailing
• Finish: High-polish finish

Accent Stone Details

• Round Stones: Approximately 0.90 mm
• Quantity: 22
• Listed Weight: Approximately 0.088 ct total
• Setting Type: U-cut setting
• Round Stones: Approximately 1.00 mm
• Quantity: 62
• Listed Weight: Approximately 0.310 ct total
• Setting Type: U-cut setting
• Round Stones: Approximately 1.10 mm
• Quantity: 2
• Listed Weight: Approximately 0.012 ct total
• Setting Type: U-cut setting

Overall CAD Details

• Total Stone Quantity: 87
• Listed Diamond Weight: Approximately 2.515 ct
• Listed Total Stone Weight: Approximately 2.91 ct
• Top Design Width: Approximately 8.90 mm
• Setting Height: Approximately 9.62 mm
• Band Width at Base: Approximately 2.00 mm
• Band Thickness at Base: Approximately 1.50 mm
• Design Details: Radiant-cut center, double pavé split shank, crossing shoulders, elevated open gallery, and polished lower band

Approximate Metal Weight at US Size 7

• 925 Sterling Silver: 2.21 g
• 10K Gold: 2.47 g
• 14K Gold: 2.7625 g
• 18K Gold: 3.25 g
• 22K Gold: 3.705 g

Standard Closing

925 Sterling Silver and 8K, 10K, 14K, 18K, 22K gold options available. Color options: Silver, Gold, and Rose. Stone options: A+++++ Zircon or Diamond. Manufacturer: Oryyn Jewelry.
